| Thickness: | 12,6 mm |
| Standard lengths: | 600, 1000, 1200, 1500, 1800, 2400 i 3000 mm* |
| Special lengths: | 400-3000 mm |
| Standard width: | 400, 600, 800 i 1200 mm |
| Special width: | 260-1200 mm |
| Weight plain panel: | 15,7 kg/m2 |
| Surface treatment: | 3 layers UV-cured lacquer, gloss rate 20 |
| Veneer glue: | Melamin - urea glue with a low content of formaldehyde |
* 2400 mm max for Gemini® veneer
THE EDGE AND EDGE PROFILES
Gustafs panels has a solid wood edging. Besides the decorative function it strengthens up the panel, by improving its stiffness and endurance

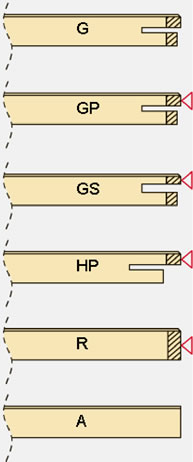

EDGE PROFILES
 |
-G closed joint |
|
-GP Open joint with lacquered edge for profile |
|
|
-GS Open joint with lacquered edge for profile and strap |
|
|
-HP Open joint for demountable panel |
|
| -R Straight, visible edge, lacquered | |
|
-A Cut panel, no visible edge |
|
 Lacquered edge |
 Solid edging |
Capax:
GUSTAFS PANEL SYSTEM® INSTALLATION
Panels are delivered as a final product; therefore they should be handled with a special care.
They should be protected from mechanical damages, humidity influence, sun light.
The best time to mount the panels is the last faze of finishing works, when the rooms conditions are similar to the final moisture and temperature conditions in the room
GUSTAFS PANEL SYSTEM® CAN BE INSTALLED TO MOST OF THE UNDERLAY TYPES
CAPAX INSTALLATION SYSTEM
Gustafs Panel System® is fitted on to walls by means of Capax mounting profiles. Each panel is locked on all four sides by means of Capax profiles. The profiles are fitted on to a screw able base that is firmly anchored in the underlying construction.
Profiles system Capax insures simple and efficient montage.
Capax profiles for walls are 2400 mm.
All profiles can be cut on site using a high speed circle saw. The profiles should be mounted using a self drilling flat headed screw. Countersunk screws should be avoided as they deform the profile. The Capax profiles come with a plain aluminum finish. Profiles utilized in corners or finishing ends are supplied in an anodized silver grey tone.
MONTAGE INSTRUCTION FOR GUSTAFS WALL PANEL
1. Adjusting surface alignment by inserting spacers behind the battens
2. Inserting mineral wool slabs between battens
3. Start panel montage
4. First panel mount
5. Screwing in the joint profile
6. Next panel mount
7. Finishing touch and fixing the end profiles.
MAINTANANCE OF GUSTAFS PANELS
Climate
Gustafs Panel System® is only for indoor use. Before installation, the room should be heated and well dried. A temperature over 18 Co and relative humidity of 25-60% are required. The maximum allowed humidity in the underlying construction is 15%.
Construction damage
Protect the panels during transport and storage. Cover all parts that can be exposed to damage. Remember not to expose the panels to strong sunlight.
UV-Light
Wood is a natural material and changes over time when exposed to UV-light. Different wood species react in different ways and the UV-radiation varies with the seasons.
Water
Too much water causes discoloration and cracking in the veneer. If this happens it is necessary to replace the panel. Small damages can be reconditioned with furniture polish.
Heat
Temperatures over 50 Co may result in discoloration and cracking of the surface. See water damages above.
Cleaning
Gustafs panels are easy to maintain. Normally there is no need for a regular cleaning. If required the panels can be dusted with a dry mob or vacuumed.
Stains
Moisten a piece of cotton with lukewarm water and wipe the panels to remove most stains. For greasy stains cleaning fluid or white spirit can be used. For stains from fruit, berries, beer, wine or coffee use a synthetic cleaning fluid without ammonia in lukewarm water. Blood can be removed with cold water.
